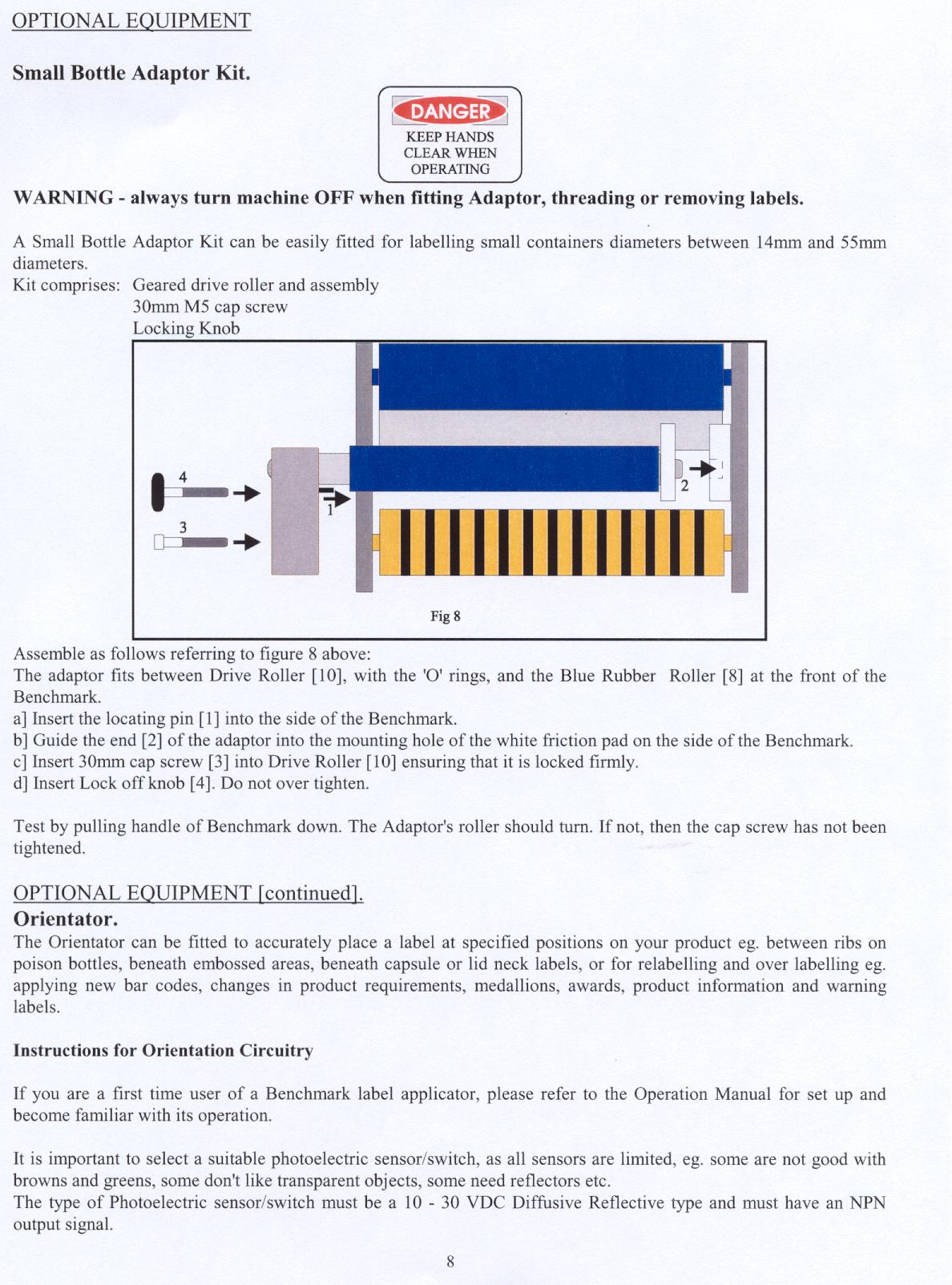

The Small Bottle Adapter can be easily fitted and permits the labelling of containers with diameters between 9/16” (14mm) and 2-1/8” (55mm)

Increase production with the Automatic Labelling Attachment. Operated by push-button, foot-switch or external input, it quickly grips, labels and releases containers automatically, allowing for another packaging process to be performed simultaneously. Pressure on containers and labels is fully adjustable to suit glass, metal or soft plastic containers.

The Label Orientator scans the surface of a container to identify a registration mark, an existing label, a colour code or embossing on the container and then applies one or two sets of labels, oriented to a specific location. The Orientator is ideal for relabeling and overlabelling, to apply new bar codes, special offers, medallions, awards, product information and warning labels.

 General Info
 Optional Equipment

Label Size Range

Roll die-cut - left edge leading:
Max roll diameter: 12 -1/2" (315mm)
Core diameter: 1-1/2"(38mm)
and 3" (76mm)
Max height: 6-3/4" (170mm)
Min height: 3/8" (10mm)
Max width: 9-1/16"(230mm)
Min width: 3/4" (20mm)

Container Diameter

Round:
Min Diameter: 2-1/8" (55mm)
Max Diameter: 4-3/8" (110mm)

SBA:
Min Diameter: 9/16" (14mm)
Max Diameter: 2-1/8" (55mm)

Voltage

220/240 VAC 50htz. or 110 VAC 60htz.

Weight and Dimensions

Benchmark:
20-3/4" x 13` x 14-1/8"high
(52.5am x 33cm x 36cm)
45 lbs. (19kg)

Benchmark with all options:
20-3/4" x 13` x 14-1/8"high
(52.5am x 33cm x 36cm)
55 lbs. ( 23kg)

Printer Options

For Print and Apply applications, the Benchmark is equiped with an output interface that can be plugged into a variety of printers.

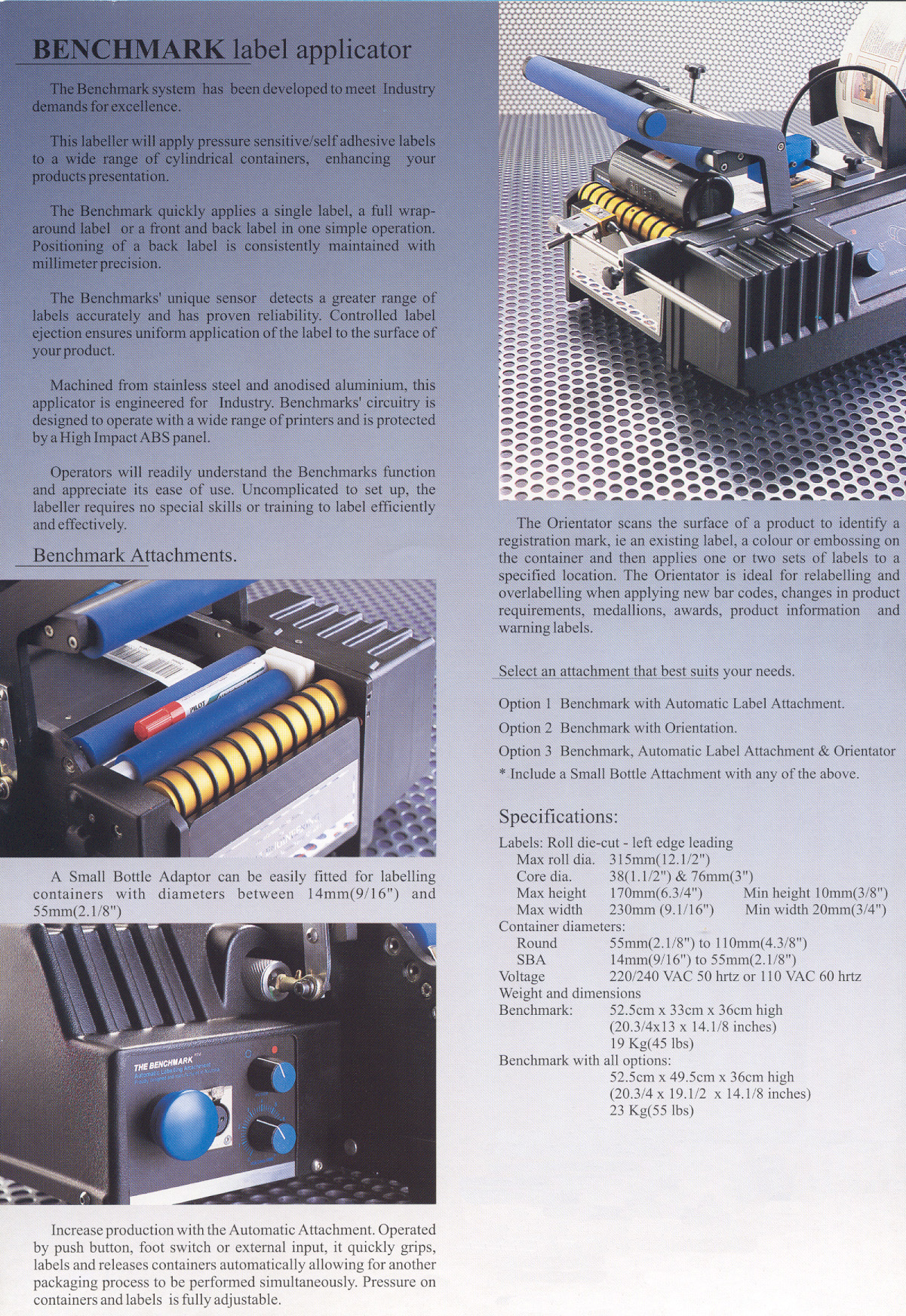

The Benchmark system has been developed to meet industry demands for excellence in labelling. The labeller applies pressure sensitive / self-adhesive labels precisely on a wide range of cylindrical containers, to enhance your products` presentaion.
